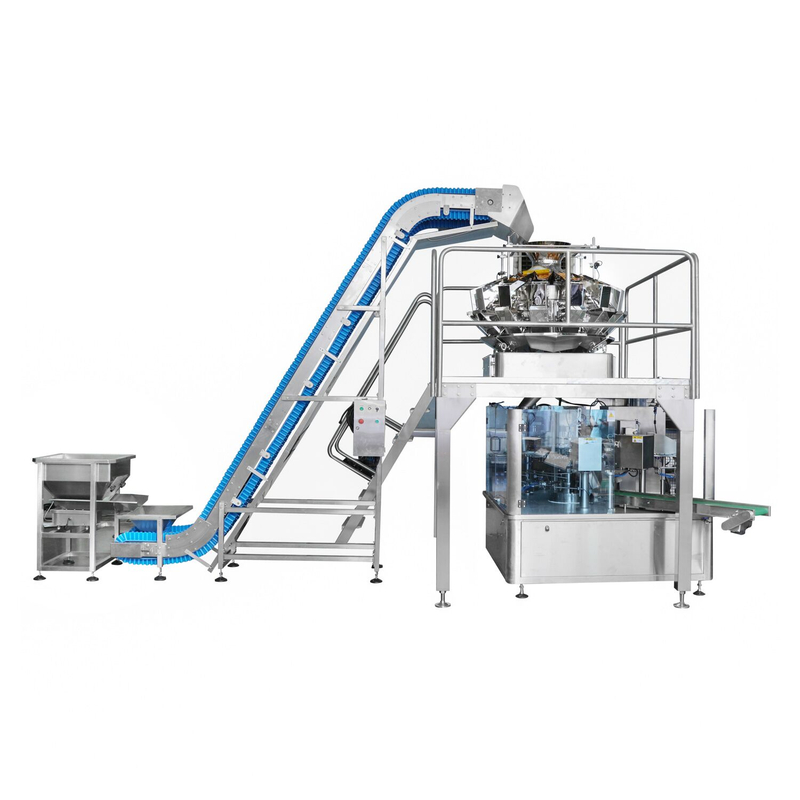

WP-BF Series Automatic Multi-Function Rotary Premade Stand up Pouch Bag Filling Powder Snack Food Packaging Packing Machine

Feature:
1. Automatic warning protect function, safer working environment and less materials lossing.
2. The frame of machine is made of SS304 stainless steel, man-machine interface, easy to operate and maintence.
3. Available system for choice: remote diagnosis system, automatic lubrication system, automatic clips adjusting system.
4. Widely used for preformed zipper bag, standup pouch bag, side sealing bag, handbag, paper bag and so on by one machine.
Availability:
Inquire Add to Basket

  • WP-BF8200

  • Wilpac





Model WP-BF8200 WP-BF8260 WP-BF6320
Station 8 station 8 station 8 station
Bag size L*W=(<350)*(100-220)mm L*W=(<400)*(140-260)mm L*W=(<450)*(200-320)mm
Packing speed 10-600bags/min 10-60bags/min 10-60bags/min
Power 2kw/380V/50/60HZ 2kw/380V/50/60HZ 7kw/380V/50/60HZ
Gas consumption 0.4-0.6 m³/min 0.4-0.6 m³/min 0.4-0.6 m³/min
Machine size L*W*H=1610*1510*1480mm L*W*H=1650*1820*1580mm L*W*H=1770*1540*1580mm
Machine weight 1400kg 1600kg 1600kg

Working Process


6station -1

8station
