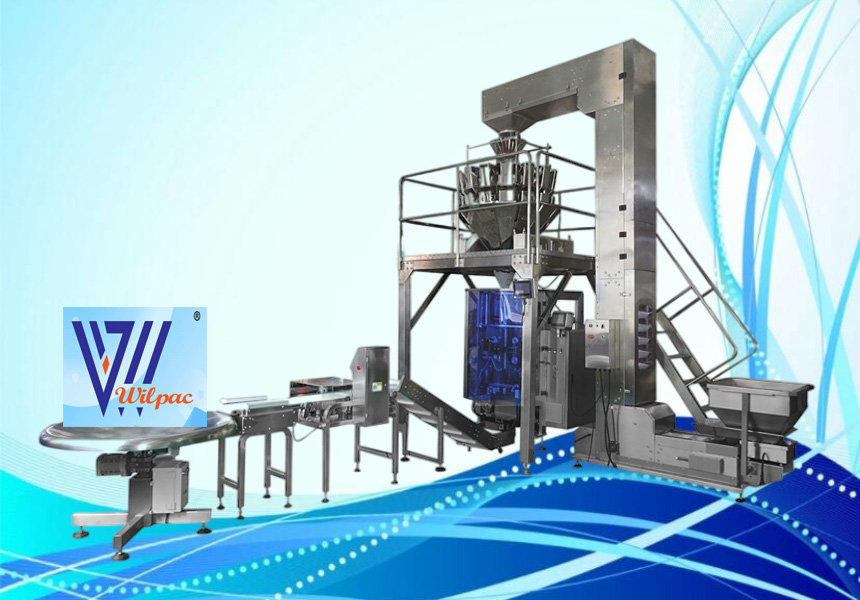

Multi-head weigher vertical packaging machine food packing machines fully automatic packaging machine food packing
* Weighing Heads: 10 / 14 heads
* Weighing Range: 10~1000g / 10~2000g
* Applicable Bag Type: pillow bag, gusset standup bag, side sealed bag
* Applicable Film Material: a variety of laminated films, aluminum foil film, single layer PE film
* Weighing Range: 10~1000g / 10~2000g
* Applicable Bag Type: pillow bag, gusset standup bag, side sealed bag
* Applicable Film Material: a variety of laminated films, aluminum foil film, single layer PE film
-
WP-PS Series
-
Wilpac
VIDEO:
Multiheads Weigher Packaging Machine For Food Industry
Multiheads Weigher Packaging Machine Specification:
| Item No. | WP-HC361403 | WP-HC361405 | WP-HC461416 |
| Weighing Head | 14 heads | 14 heads | 14 heads |
| Max. Single Dump Cap | 3~50g | 3~200g | 10~2000g |
| Weighing Accuracy | ±0.1~0.5g | ±0.1~1.0g | ±0.1~2g |
| Max. Weighing Speed | 100WPM | 120WPM | 120WPM |
| Volume | 300ml | 500ml | 1600ml |
| Film Width | 140~360mm | 140~360mm | 160~460mm |
| Bag Size Range | L: 60~25mm W: 50~170mm | L: 60~250mm W: 50~170mm | L: 60~300mm W: 60~220mm |
| Max. Packing Speed | 100bags/min | 100bags/min | 90bags/min |
| Film Pulling Driven System | servo motor | servo motor | servo motor |
| Horizontal Sealing Driven System | servo motor | servo motor | servo motor |
| Voltage | 4.75KW/220V/50(60)Hz | 4.75KW/220V/50(60)Hz | 5.6KW/220V/50(60)Hz |
| Gas Pression | 0.6MPa | 0.6MPa | 0.6MPa |
| Gas Consumption | 0.15m⊃3;/min | 0.15m⊃3;/min | 0.2m⊃3;/min |
| Machine Size(mm) | L*W*H=1325*1071*2125 | L*W*H=1325*1071*2125 | L*W*H=1800*1140*2659 |
| Machine Weight | 580KG | 600KG | 800KG |
Z Shape Elevator Specification:
| Item No. | WP-T1-1.8 | WP-T2-4 |
| Hopper Volume | 1.8L | 4L |
| Hopper Material | PP | PP |
| Conveying Capacity | 6m⊃3;/h | 9m⊃3;/h |
| Power Requirement | 0.75KW/220V/50(60)Hz | 1.5KW/220V/50(60)Hz |
| Amplitude | MAX: 4mm | MAX: 4mm |
| Power | 500W | 750W |
| Machine Size | L*W*H=(2400~4200)*695*(1500~6000)mm | L*W*H=(3000~5000)*795*(2000~6000)mm |
| Machine Weight | 200~350KG | 300~450KG |
Bag Type We Can Pack:
Multiheads Weigher Packaging Line In Wilpac Workshop:
